Rotary rakes 11 arms

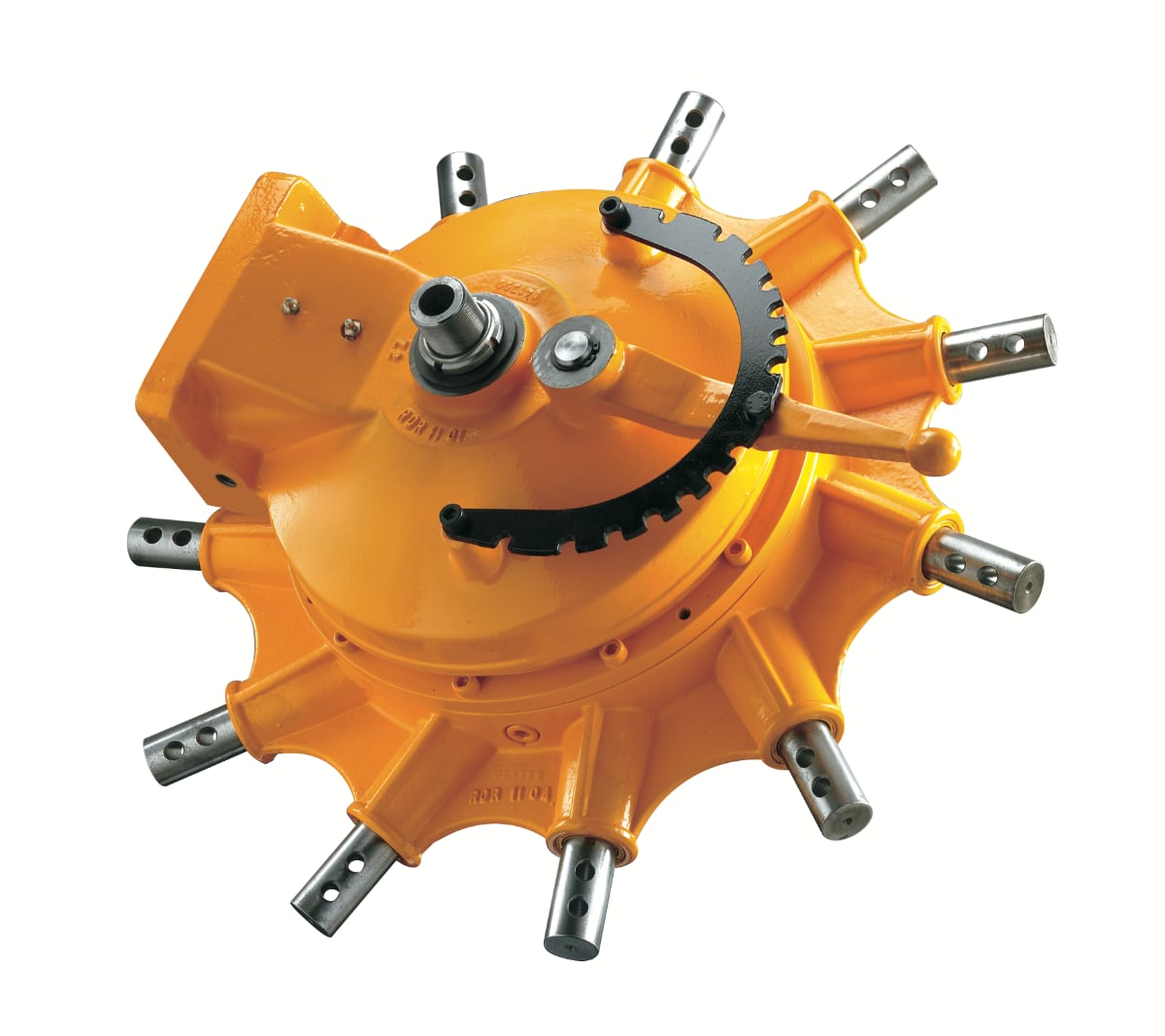

GEAR BOX FOR ROTARY RAKES - 11 ARMS SINGLE – ROTOR

TECHNICAL SPECIFICATIONS

  • Net weight without oil 126 kg.
  • Maximum speed of drive rotation 540 rpm.
  • Oscillating angle of the 11 arms 61°.
  • Working angle 144°.
  • Drive with spline shaft diam. 1” 3/8.
  • Lubrification: extreme pressure oil (SAE 90E.P.) with ISO220CST viscosity at 40°C.
  • Bevel gear pair: E.P. grease with consistency 2.
  • Clockwise rotation version.
  • Counter clockwise rotation version.

TWO-ROTOR
It is also available in the two-rotor version.


Need a tailor-made product?

Contact our technical department, we offer in addition to much experience and expertise, feasibility study, design, use of the best material available on the market in order to offer a quality product
