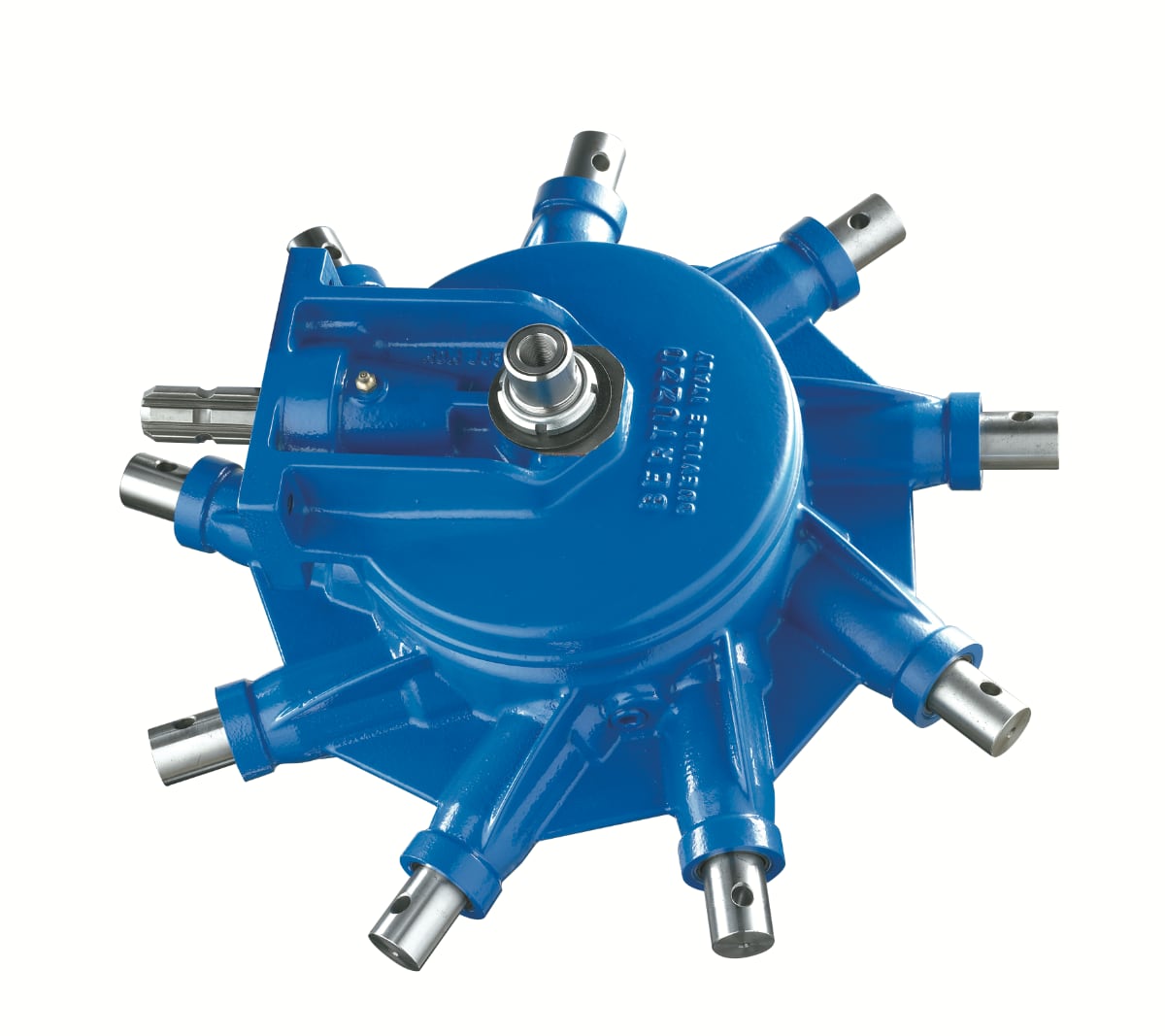

GEAR BOX FOR ROTARY RAKES – 9 ARMS SINGLE-ROTOR

Double-rotor version available.

TECHNICAL SPECIFICATIONS

  • Net weight without oil 69 Kg.
  • Maximum speed of drive rotation 540 rpm.
  • Oscilalting angle of the 9 arms 61°.
  • Working angle 144°.
  • Drive with splineshaft diam. 1″3/8.
  • Lubrication: extreme pressure oil (SAE 90 E.P.) with ISO220CST viscosity at 40°C.
  • Bevel gear pair: E.P. grease with consistency 2.
  • Clockwise rotation version
  • Counter clockwise rotation version
