Rotary rakes 8 arms

rotary-rakes-8

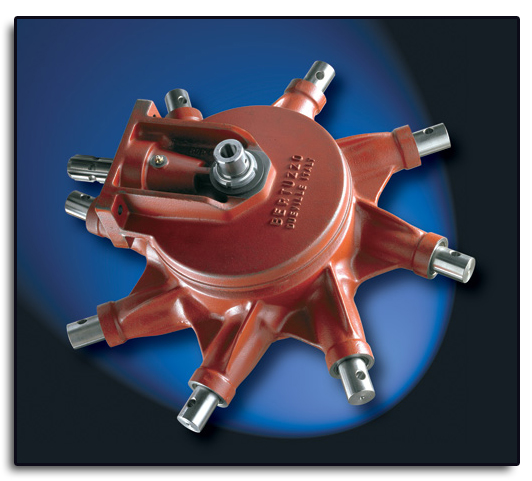

GEAR BOX FOR ROTARY RAKES – 8 ARMS SINGLE-ROTOR

TECHNICAL SPECIFICATIONS

  • Net weight without oil 67 Kg.
  • Maximum speed of drive rotation 540 rpm.
  • Oscillating angle of the 8 arms 61°.
  • Working ancke 144°.
  • Drive with spline shaft diam. 1″3/8
  • Lubrification: extreme pressure oil (SAE 90 E.P.) with ISO220CST viscosity at 40°C.
  • Bevel gear pair: E.P. grease with consistency 2.
