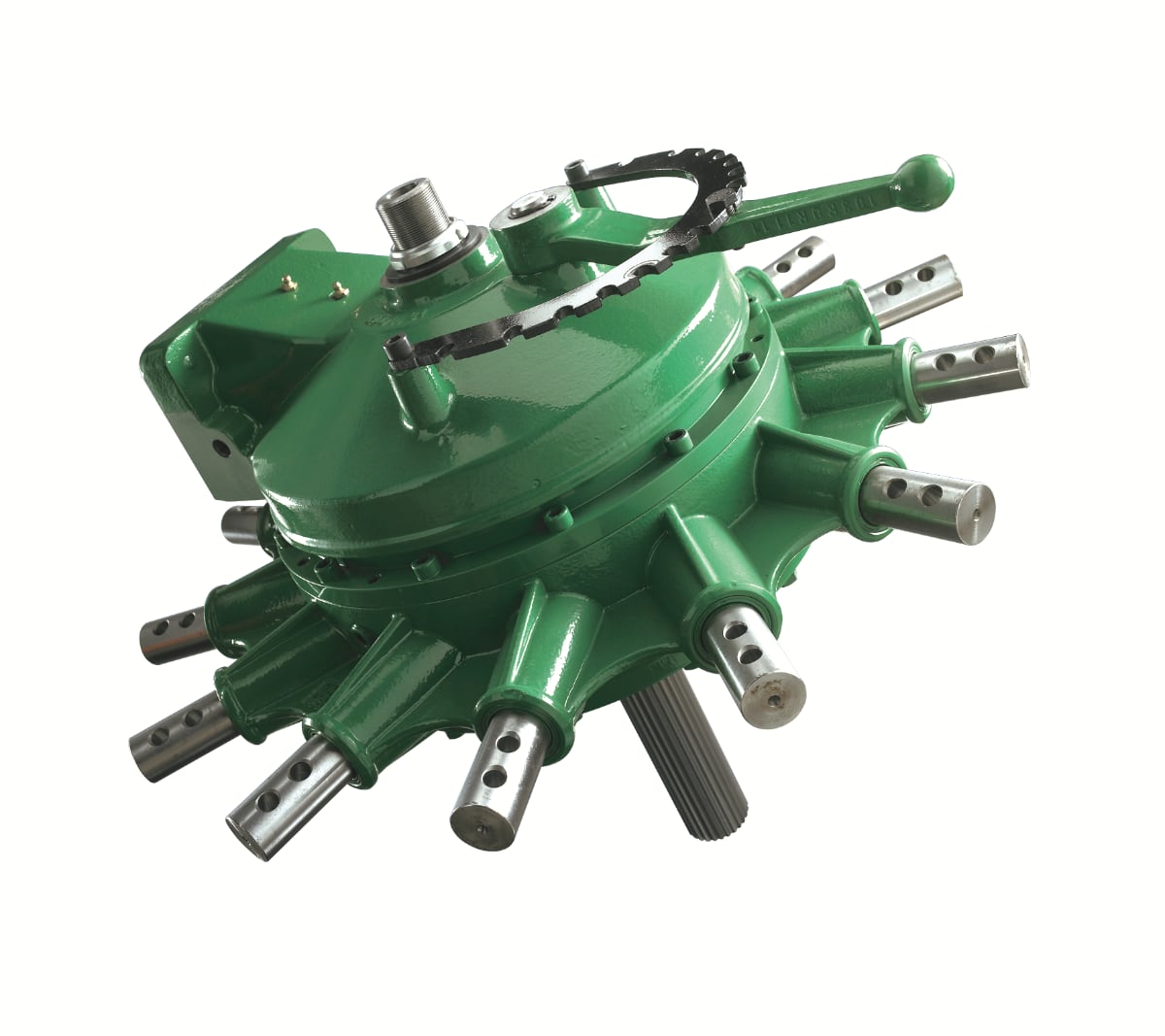

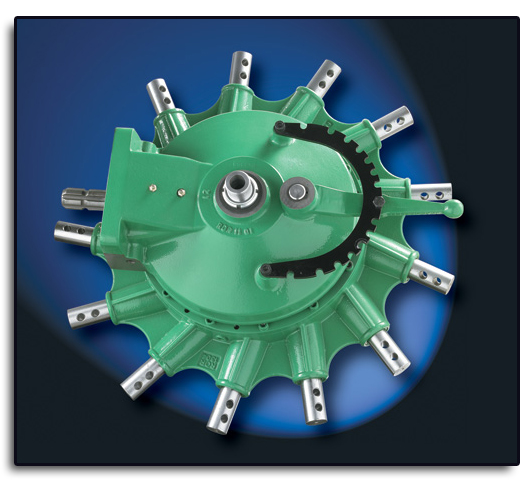

GEAR BOX FOR ROTARY RAKES – 13 ARMS SINGLE-ROTOR

Double-rotor version available.
With phase transformer.

TECHNICAL SPECIFICATIONS

  • Net weight without oil 126 Kg.
  • Maximum speed of drive rotation 540 rpm.
  • Oscillating angle of the 11 arms 61°.
  • Working angle 144°.
  • Drive with spline shaft diam. 1″3/8.
  • Lubrication: extreme pressure oil (SAE 90 E.P.) with ISO220CST viscosity at 40°C.
  • Bevel gear pair: E.P. grease with consistency 2.
  • Clockwise rotation version.
  • Counter clockwise rotation version.
